Tranql Series

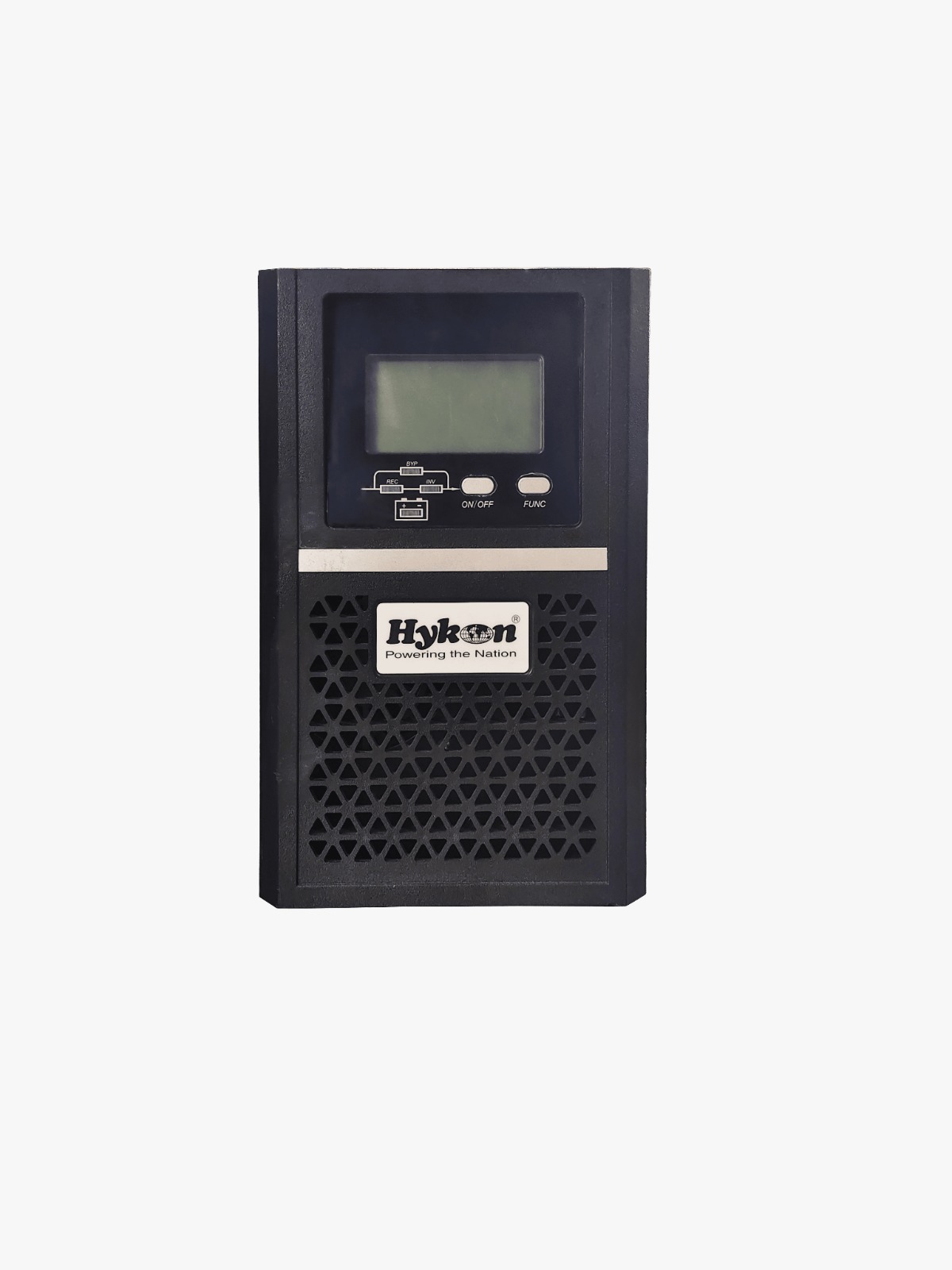

Hykon 2 KVA Online UPS with 60 minute Backup

Tranql Series is the most powerful online UPS with true double conversion design, DSP technology, active input power factor correction design to ensure better output voltage conditions, power quality & performance. It can be easily programmed using LCD panel. It can meet power demaind of IT & medical equipments "



Online UPS with IGBT-PWM ((Insulated Gate Bipolar Transistor - Pulse Width Modulation) switching technology and maximum 2% Total Harmonic Distortion at Linear Load.

Hykon 2 KVA Online UPS comes with Under Voltage Protection , Over Voltage Protection, Short Circuit Protection, Over Load Protection, and Over Temperature Protection.


Specifications

Rating (in KVA)
2
Input Voltage (AC, 50 Hz)
Single Phase, 160V - 260V
Output Voltage (AC, 50 Hz)
Single Phase, 230V±1%,
Availability of Inbuilt Isolation Transformer
No
Type of Battery
SMF-VRLA (Sealed Maintenance Free-Valve Regulated Lead Acid) / Stationary Lead Acid Batteries
Backup Time
60 minute
